K Series LED Specialists
Core Advantages:
① Precision Touch
✔ 20 simultaneous touch points
✔ Ultra-fast 6ms response time
✔ Dual-System Ready – Simultaneous dual-host operation via dual-USB architecture
✔ Full touch coverage up to 5m (only 10-20cm inactive edges on 17m displays)
✔ Advanced anti-interference technology: Patented filtering for LED display infrared noise, ensuring stable operation even in high-ambient-light environments (up to 10,000 LUX)

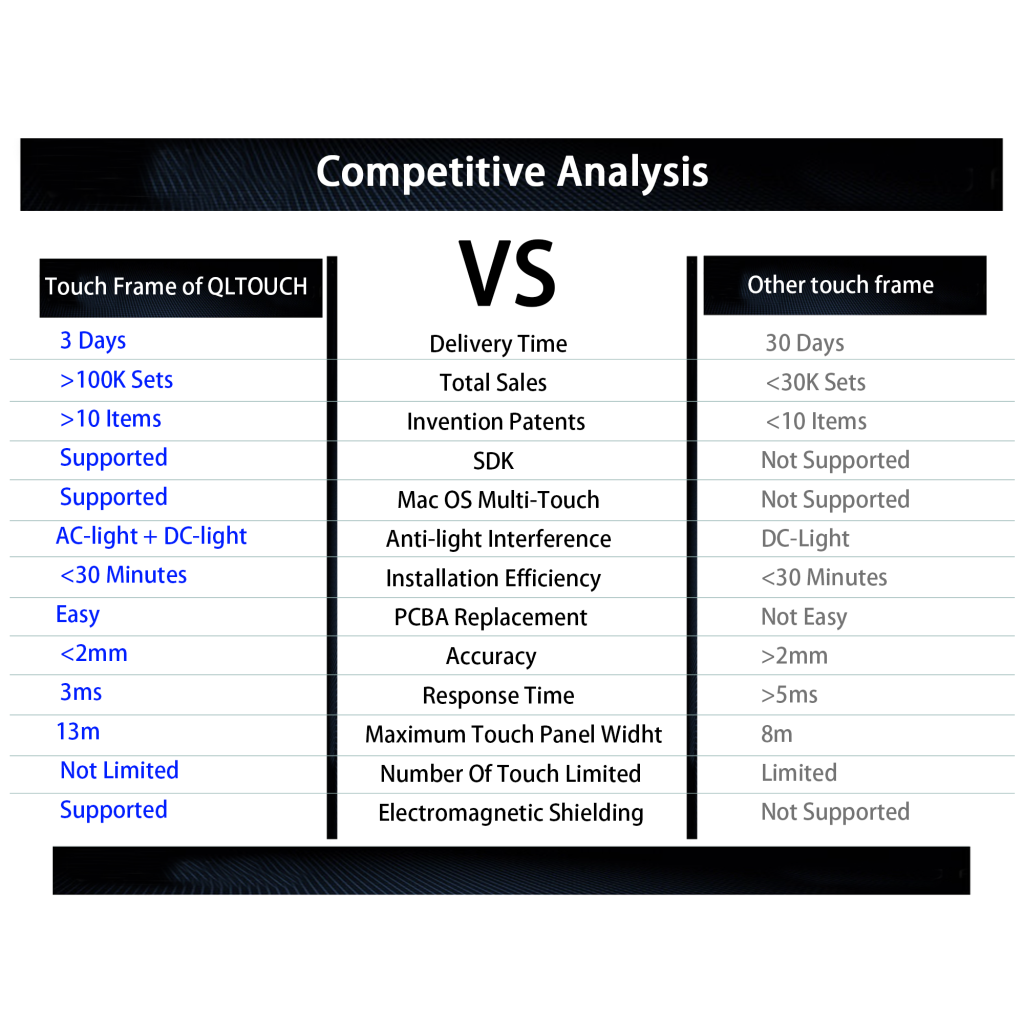

✔ 10-52x faster throughput vs conventional solutions
② Smart Architecture

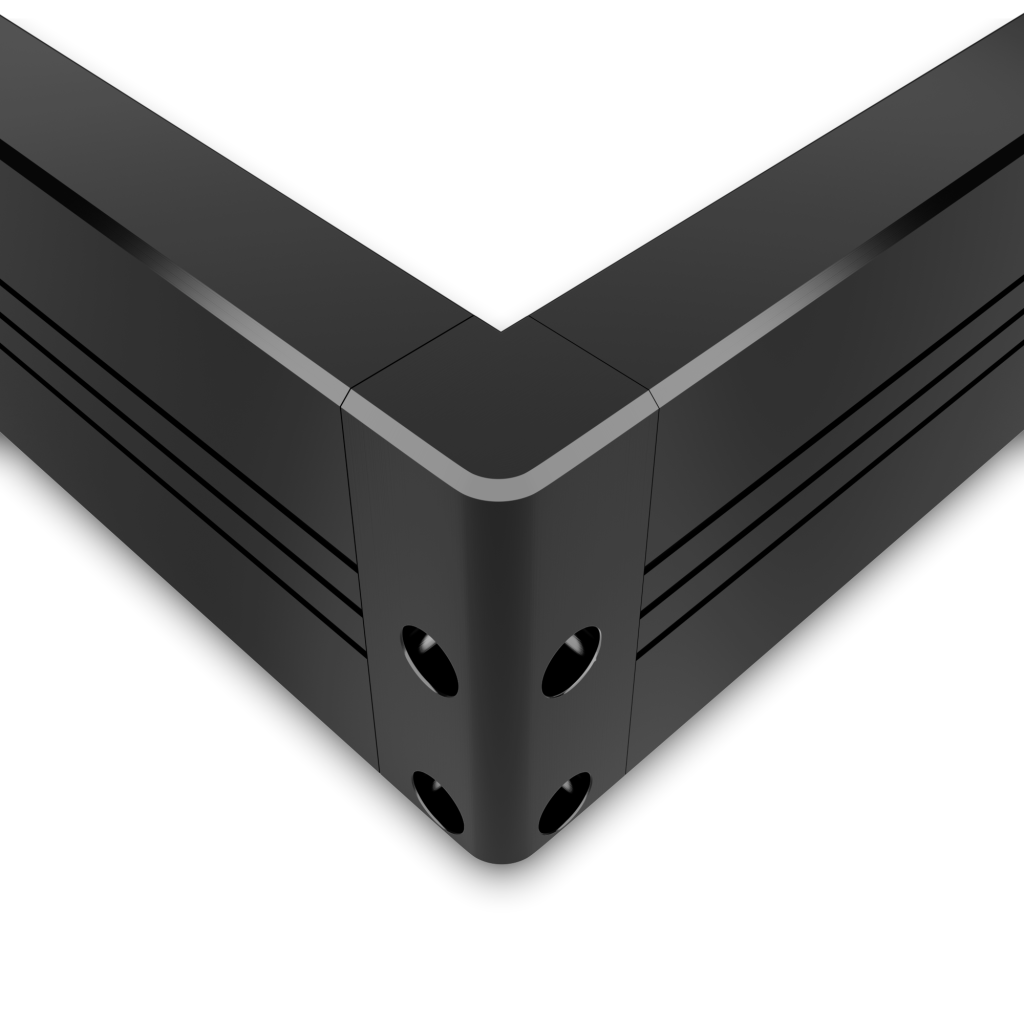

✔World’s narrowest 12mm bezel – preserves LED visual integrity

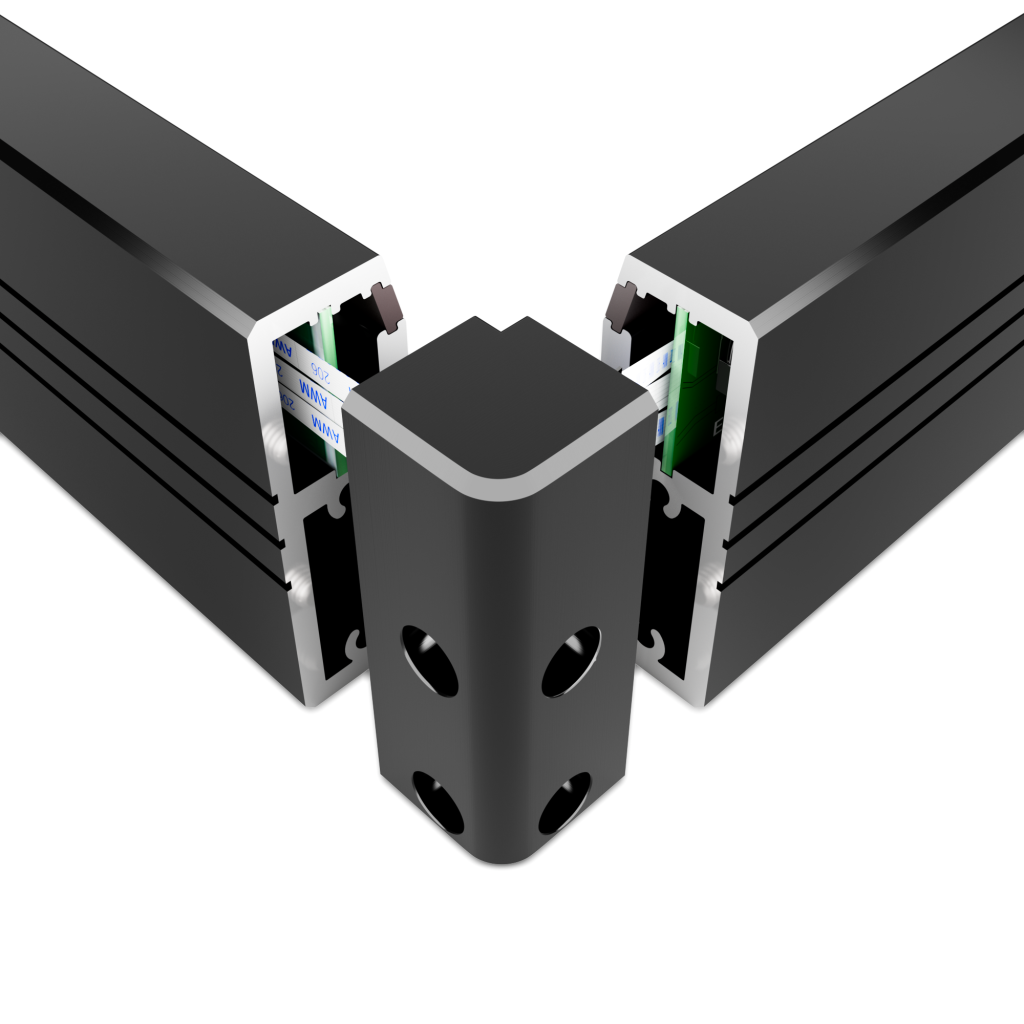

✔Modular Panel System – Configurable in 300mm/337.5mm/600mm units
✔ Side-Mount Mechanism – Optimized touch height adjustment for ergonomic use
✔ The Dual-USB will be Mapping to 2 Host: defaults to Fixed Mapping Mode, transitioning to Dynamic Mapping Mode upon receiving configuration commands from an external controller.
③ Universal Compatibility

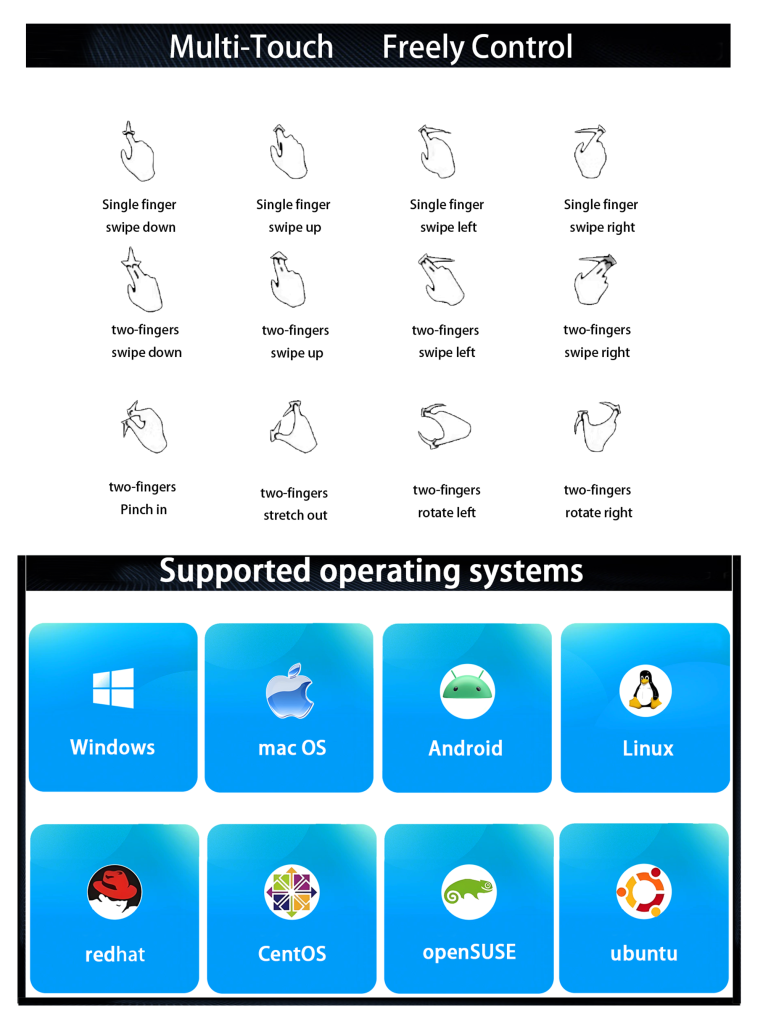

✔ Plug-and-play: Windows/macOS(Multi-touch Driver is available)/Linux/Android
✔ Debugging detection efficiency is high with intelligent diagnostic software;
✔ SDK for system integration & TUIO protocol support

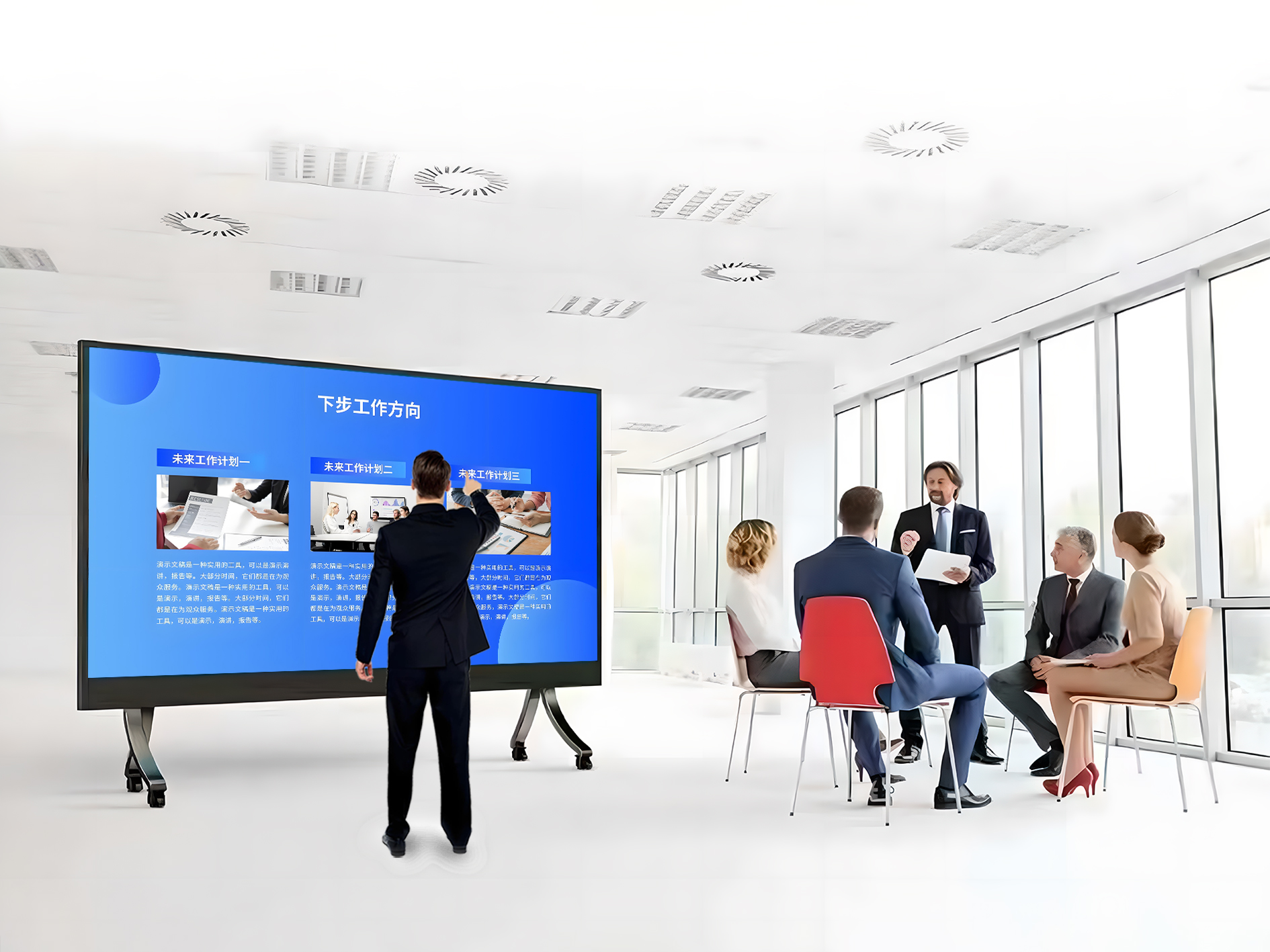

Interactive LED screens for large classrooms, Corporate Conference Rooms, Command Centers, Interactive Exhibitions
Conference
Lecture Hall
Military Command Center
Size（Customize）：>100”(Max 240”)
detectable touch points：20 points
Glass：Non
Frame Color：Black

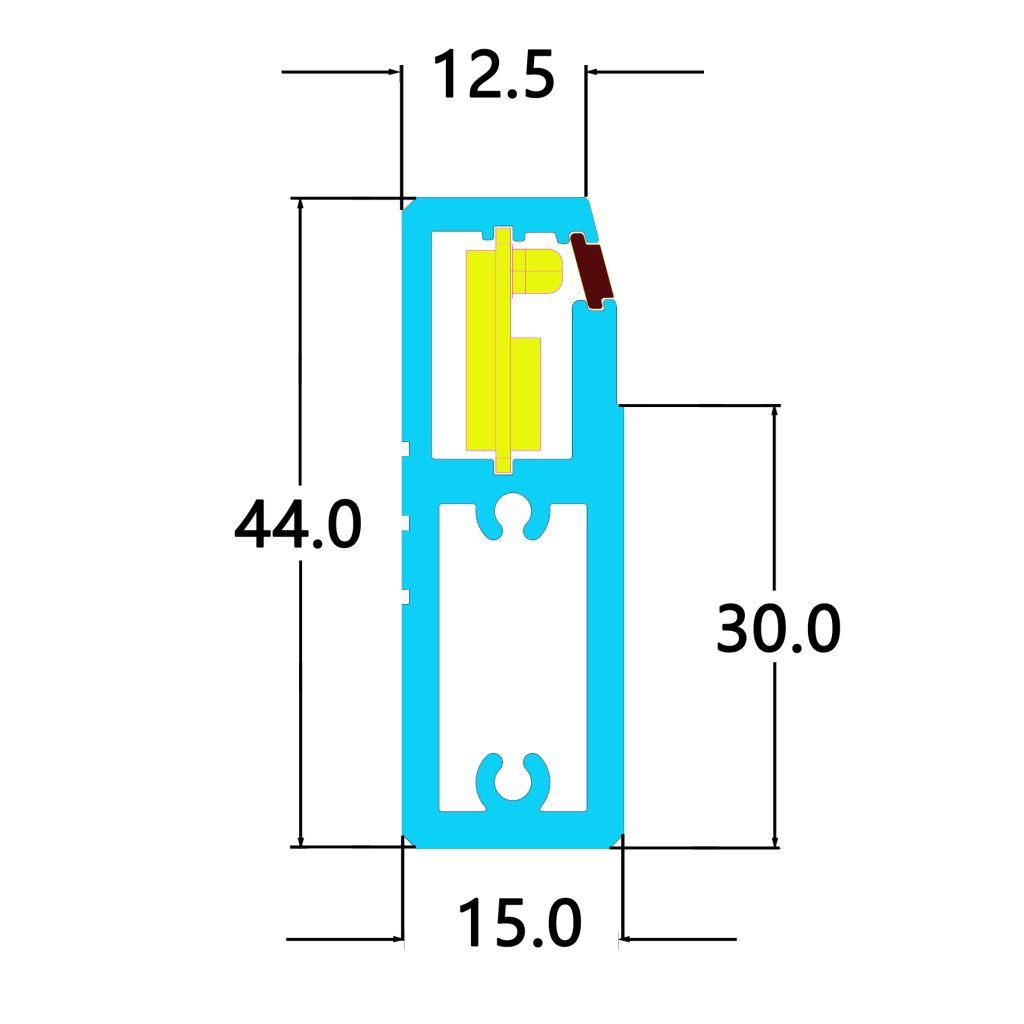

Frame Thickness：44mm
Power Supply：
• Run freely <400mA，4.5V ~ 5.5V
• Sleep <150mA，4.5V ~ 5.5V
Interface(Optional)：
• USB Series A USB2.0（Full speed. Compatible with USB 1.1 port. HID Compatible.
Plug and play Compatible.
• Com：Baud：115200 bit/s
OS：Windows 2000,Windows Xp, Windows Vista, windows 7 or later , Linux, Mac OS , Android
Construction：PCBA, Aluminum, Infrared filter
Assemble：Easy assemble
Touch Method：
• Finger，gloved hand，unclear-water pointer.
• Center area：Stylus minimum 6mm tip.marginal area(<2.0 cm)：Stylus minimum 8mm tip.
Touch Accuracy：<2mm
Touch Durability：Unlimited
Touch Activation Force：No pressure required
Report Resolution：32767*32767
Touch Response time：Single touch < 5ms,10-touch <15ms ,20-touch < 20ms
Light Resistance：
• Advanced anti-interference technology: Patented filtering for LED display infrared noise, ensuring stable operation even in high-ambient-light environments (up to 10,000 LUX)
• The side of touch frame with the emitting diode is installed on the down edge of the screen, and the touch frame has high light resistance, which is suitable for outdoor use
Front Maintenance：supported
The Dual-USB will be Mapping to 2 Host:
• Fixed Mapping Mode：
①In one touch frame area, a host uses with multiple dispalys of extended mode, each display supports touch (non-simultaneous), up to 64 channels;, and supports up to 64 channels;
②A touch frame area contains multiple monitors of different hosts, each host can be touched at the same time without interfering with each other, and supports up to 32 channels;
③In one touch frame area, touch can be working with multiple displays of different hosts or expand multiple displays of one host ,or in combination
• Dynamic Mapping Mode：
Provide a secondary development kit interface to communicate with the matrix, splicing processor, and other central controllers, which can realize touch synchronization with the addition of signal sources, switching, window opening, and roaming;
Environment：
•Operating Temperature -20 ℃ to 65℃
•Storage temperature: -30°C to 85°C
•Operating humidity:10% to 90% RH, non-condensing
•Storage humidity: 10% to 90% RH, non-condensing
•Electrostatic protection: Per EN61000-4-2 1995:level 4.contact discharge 8KV, air discharge 15 KV
•EMS: IEC61000-4-3：2002 3V/m
•EMI: EN55022-2006 class B
Software & Driver：
•Plug-and-play:
Windows/macOS(Multi-touch Driver is available)/Linux/Android
Debugging detection efficiency is high with intelligent diagnostic software
SDK for system integration & TUIO protocol support
•COM-Interface: Optional protocol, support for up to 5 conference tablet solutions
Warranty：1 year
